Overview
M&C Electric Power Co.,Ltd develops electric and electric drive technology for commercial cars, trucks and shuttle buses. M&C has developed a AC induction motor system (IM) that can provide ancillary power for a variety of applications. The IM system draws energy from the combustion engine during normal driving, optimizes the use of stored or generated energy when applying ancillary power and can be plugged into the grid for off-duty charging. The system is adaptable across most EV-car, E-bus E-boat, and other commercial applications.
ideal motor for electric vehicles must not only comply with the battery discharge characteristics, but also in line with
the vehicles operation characteristics.

Features

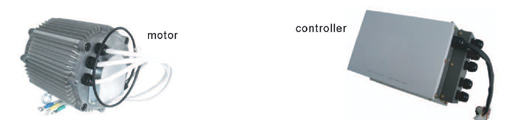

In battery EV applications, the AIM series motor system are designed for use in vehicles weighing from 1,000 to 10,000 lbs. AIM series motor features:
• High-efficiency air-cooled AC induction motor
• Sealed motor and gearbox casings
M&C’s AC series controller is a DSP-controlled, rugged, waterproof (except for cooling fans) inverter for controlling 3-phase AC motors. Liquid-cooling is available.
• DSP-based control
• Regenerative braking
• Space Vector PWM and Field Oriented Control
• Internal contactor with pre charge circuitry
• Lightweight aluminum chassis
• Waterproof, rugged construction
• Trenchgate IGBTs for maximum efficiency
• Over voltage and under voltage protection
• Three-level over current protection
• Inverter over temperature protection
• Motor over temperature protection
