> Gear motor
PMDC Circular Gear Motor
PRODUCT INTRODUCTION
PMDC Gear motor
25CJ3K/2430
Product Specfication and Usage--
1. Dimeter 25MM planet gear reductor allows load 3kg.cm;
2. Suitable for small torque equipment and facilities

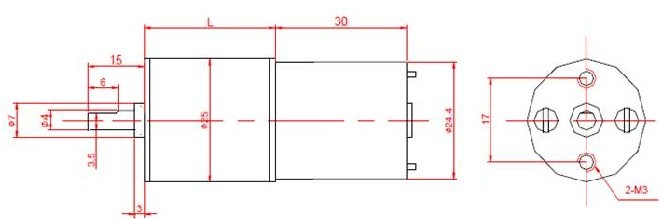

Dimensions

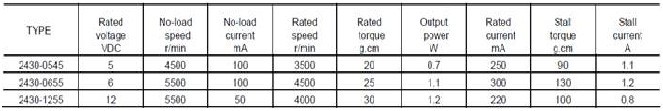

Motor Technical Data

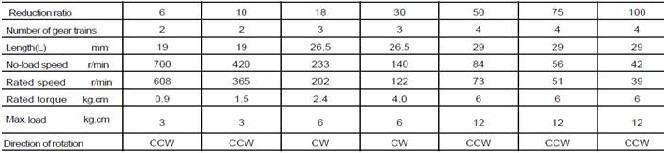

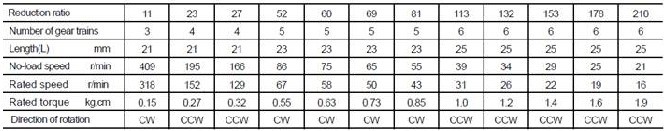

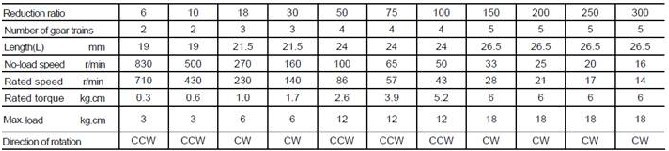

Gear motor Technical Data
Complete model of configuration 2430-0545 motor：25CJ3K□/2430-0545（□Fill in reduction ratio）
Complete model of configuration 2430-0655 motor：25CJ3K□/2430-0655（□Fill in reduction ratio）
PMDC Gear motor
37CJ6K/3324
Product Specfication and Usage--
1. Dimeter 37MM planet gear reductor allows load 6kg.cm;
2. Suitable for small torque equipment and facilities

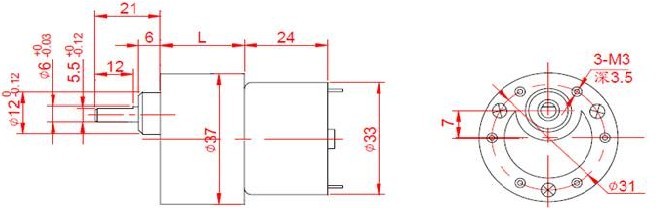

Dimensions

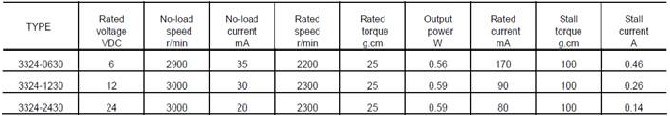

Motor Technical Data

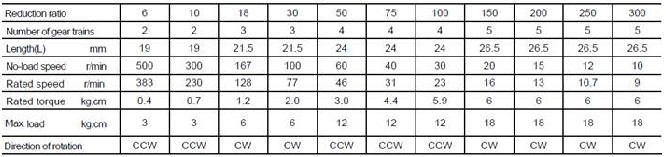

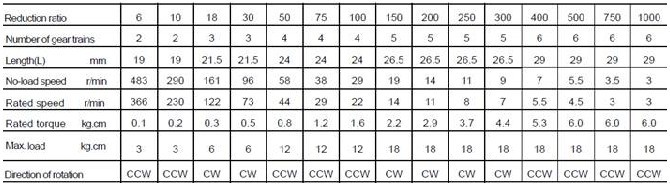

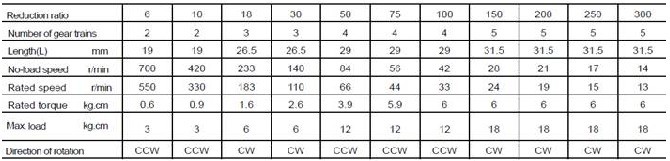

Gear motor Technical Data
Complete model of configuration 3324-0630 motor：37CJ6K□/3324-0630（□Fill in reduction ratio）
Complete model of configuration 3324-1230 motor：37CJ6K□/3324-1230
PMDC GEAR MOTOR
37CJ6K/3540
Product Specfication and Usage--
1. Dimeter 37MM planet gear reductor allows load 6kg.cm;
2. Suitable for electrically operated valve, peristaltic pump and vending machine etc

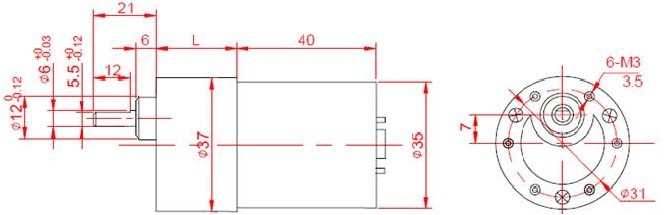

Dimensions
Motor Technical Data

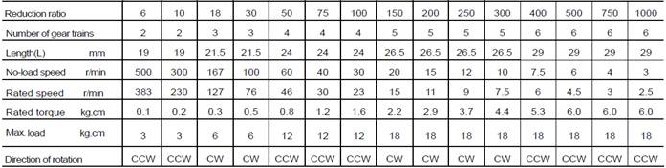

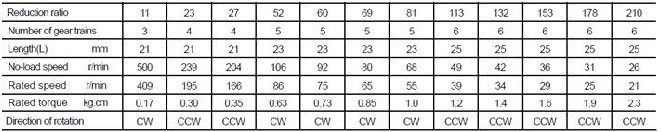

Gear motor Technical Data
Complete model of configuration 3540-1230 motor：37CJ6K□/3540-1230（□Fill in reduction ratio）
Complete model of configuration 3540-1250 motor：37CJ6K□/3540-1250（□Fill in reduction ratio）
PMDC GEAR MOTOR
37CJ6K/3650
37CJ6K/3657
Product Specfication and Usage--
1. Dimeter 37MM planet gear reductor allows load 6kg.cm;
2. Suitable for electrically operated valve, peristaltic pump and vending machine etc

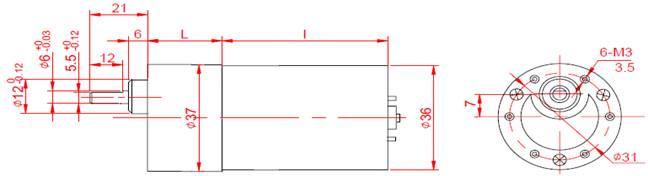

Dimensions

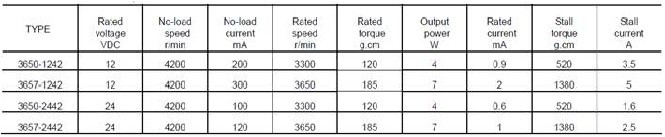

Motor Technical Data
Gear motor Technical Data
Complete model of configuration 3650-1242 motor：37CJ6K□/3650-1242（□Fill in reduction ratio）
Complete model of configuration 3657-1242 motor：37CJ6K□/3657-1242（□Fill in reduction ratio）
