> NEMA Standard Motors
NEMA single-phase motor
PRODUCT INTRODUCTION
NEMA standard single-phase induction motors are widely used in many different kinds of applications. It's specially designed with steel-plate frame, and coupled with alloy front and end cover. They are designed continuous duty
motors, and have characteristics of high efficiency, large torque, new structure,nice appearance, high insulation class, low noise, and slight vibration. Both performance and structure reach the advanced level in the world.
OPERATING CONDITIONS
Continuous duty: 40 ℃ ambient
Protection class: IP21/IP23/IP44
Insulation class: Class F
Rated frequency: 60Hz
Design standard: NEMAwith its efficiency meeting the requirement on motor’s efficiency by
United States Department of Energy.

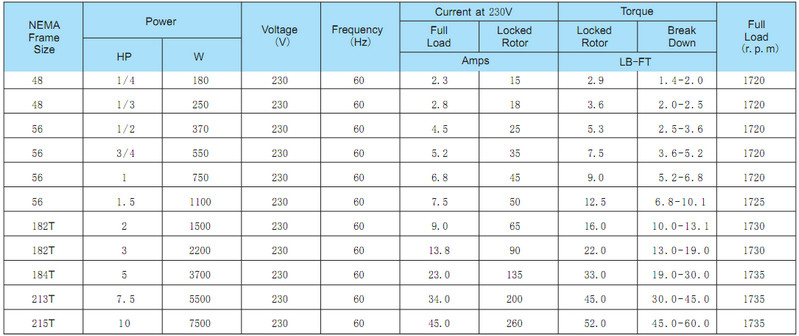

NEMA STANDARD TECHNICAL DATA
**For more detailed data, please click the image.
