PMDC Planetary Gear Motor

PMDC Planetary Gear motor



22PXJ10K/DP2238

 Product Specfication and Usage--
1.DP2238 DC motor is specially made with small diameter,low rotation speed and big torque;
2.Diameter 22MM strenghthened type reducer,allows load 10kg.cm,small volume and reliable;
3.Especially fit for electric curtain with small diameter and low noise,also fit for equipment with big strength.

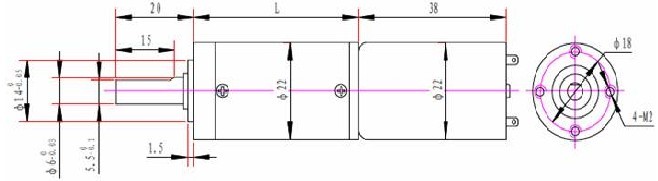

Dimensions



Motor Technical Data

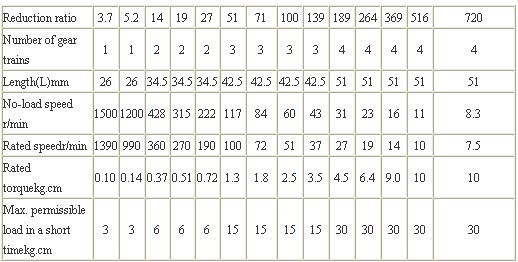

Gear motor Technical Data
Complete model of configuration DP2238-1260 motor：22PXJ10K□G6D/DP2238-1260



Complete model of configuration DP2238-12100 motor：22PXJ10K□G6D/DP2238-1260



PM DC PLANETARY GEARMOTOR



24PXJ5K/DP2430

Product Specfication and Usage--
1. Dimeter 24MM planet gear reductor allows load 5kg.cm;
2. Suitable for small diameter, large output equipment and facilities

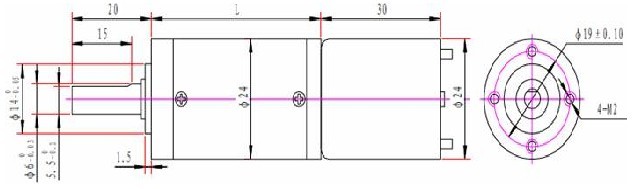

Dimensions

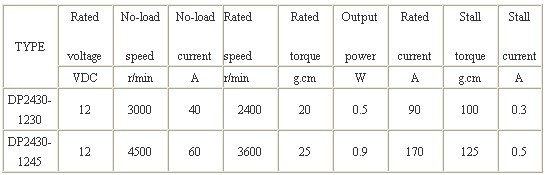

Motor Technical Data

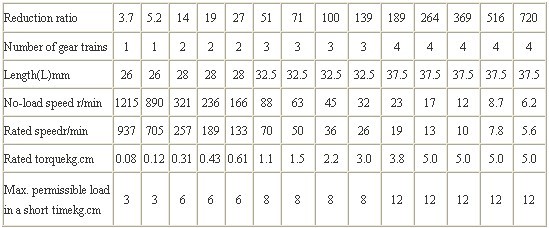

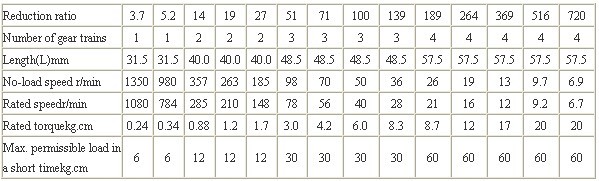

Gear motor Technical Data
Complete model of configuration DP2430-1230 motor：24PXJ5K□G4D/DP2430-1230



Complete model of configuration DP2430-1245 motor：24PXJ5K□G4D/DP2430-1245



PM DC PLANETARY GEARMOTOR



24PXJ10K/DP2430

Product Specfication and Usage--
1.Diameter 24MM strenghthened type reducer,allows load 10kg.cm;
2.Especially fit for electric curtain with small diameter and low noise,
also fit for equipment with big strength.

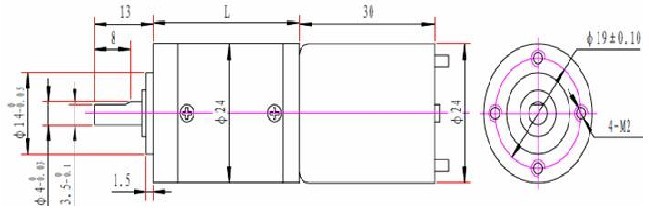

Dimensions

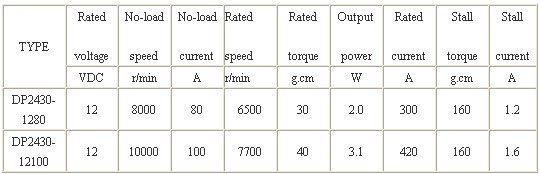

Motor Technical Data

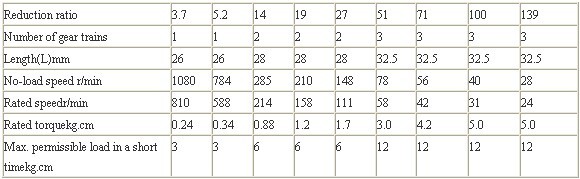

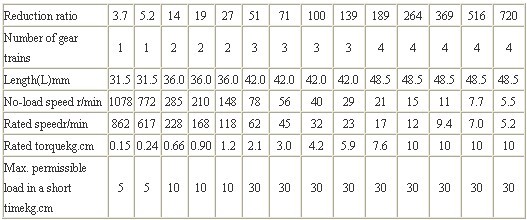

Gear motor Technical Data
Complete model of configuration DP2430-1280 motor：24PXJ10K□G4D/DP2430-1280



Complete model of configuration DP2430-12100 motor：24PXJ10K□G4D/DP2430-12100



PM DC PLANETARY GEARMOTOR



28PXJ5K/DP2838

Product Specfication and Usage--
1.Diameter 28MM strenghthened type reducer,allows load 5kg.cm;
2. Suitable for small diameter, large output equipment and facilities

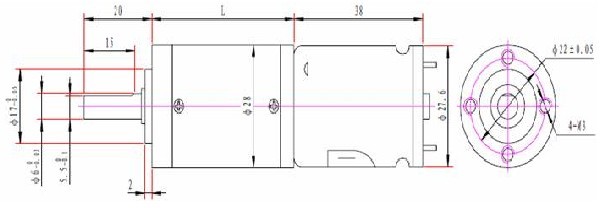

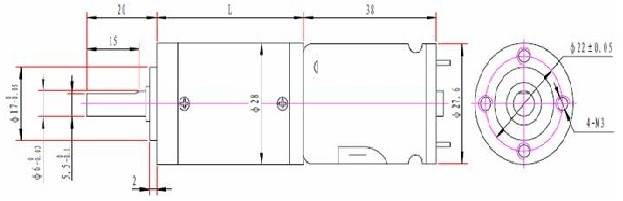

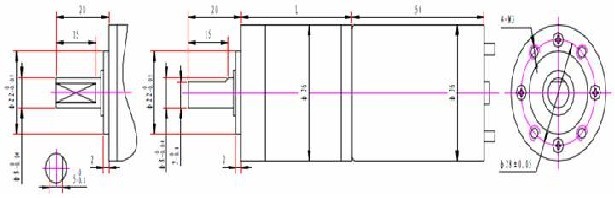

Dimensions

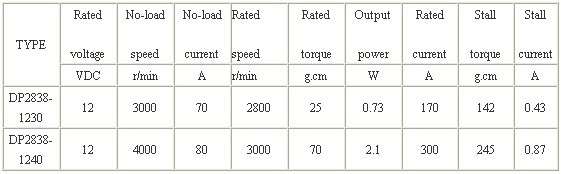

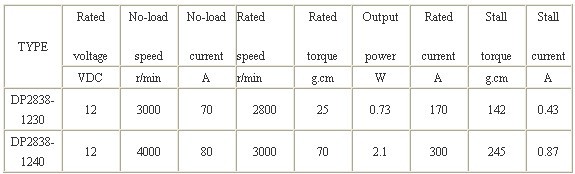

Motor Technical Data

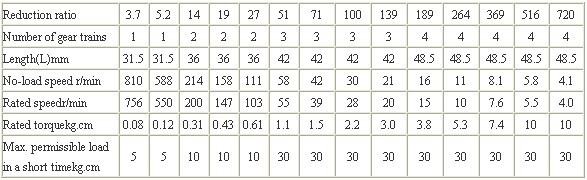

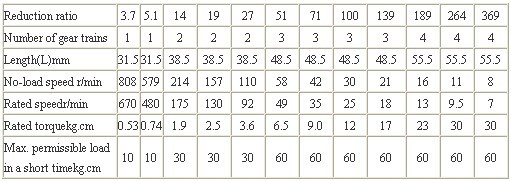

Gear motor Technical Data
Complete model of configuration DP2838-1230 motor：28PXJ5K□G6D/DP2838-1230

Complete model of configuration DP2838-1240 motor：28PXJ5K□G6D/DP2838-1240



PM DC PLANETARY GEARMOTOR



28PXJ10K/DP2838

Product Specfication and Usage--
1.Diameter 28MM strenghthened type reducer,allows load 10kg.cm;
2. Suitable for small diameter, large output equipment and facilities
Dimensions



Motor Technical Data



Gear motor Technical Data
Complete model of configuration DP2838-1230 motor：28PXJ10K□G6D/DP2838-1230



Complete model of configuration DP2838-1240 motor：28PXJ10K□G6D/DP2838-1240



PM DC PLANETARY GEARMOTOR



28PXJ20K/DP2838

Product Specfication and Usage--
1.Diameter 28MM strenghthened type reducer,allows load 20kg.cm;
2. Suitable for small diameter, large output equipment and facilities
Dimensions

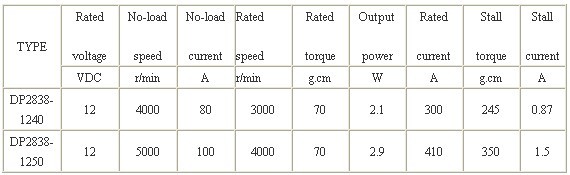

Motor Technical Data



Gear motor Technical Data
Complete model of configuration DP2838-1240 motor：28PXJ20K□G6D/DP2838-1240



Complete model of configuration DP2838-1250 motor：28PXJ10K□G6D/DP2838-1250



PM DC PLANETARY GEARMOTOR



36PXJ10K/DP3530

Product Specfication and Usage--
1.Diameter 36MM strenghthened type reducer,allows load 10kg.cm;
2. Suitable for small diameter, large output equipment and facilities
Dimensions

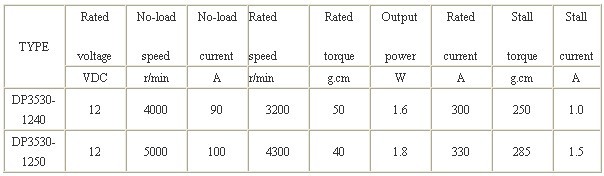

Motor Technical Data



Gear motor Technical Data
Complete model of configuration DP3530-1240 motor：36PXJ10K□G8D/DP3530-1240



Complete model of configuration DP3530-1250 motor：36PXJ10K□G8D/DP3530-1250



PM DC PLANETARY GEARMOTOR



36PXJ20K/DP3550

Product Specfication and Usage--
1.Diameter 36MM strenghthened type reducer,allows load 20kg.cm;
2. Suitable for small diameter, large output equipment and facilities
Dimensions

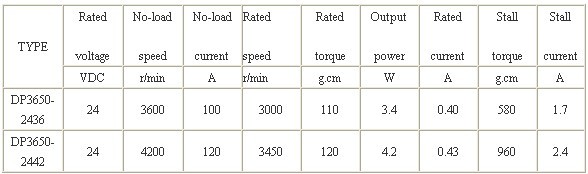

Motor Technical Data



Gear motor Technical Data
Complete model of configuration DP3650-2436 motor：36PXJ20K□G8D/DP3650-2436



Complete model of configuration DP3650-2442 motor：36PXJ20K□G8D/DP3650-2442



PM DC PLANETARY GEARMOTOR



36PXJ30K/DP3863

Product Specfication and Usage--
1.Diameter 36MM strenghthened type reducer,allows load 30kg.cm;
2. Suitable for small diameter, large output equipment and facilities
Dimensions

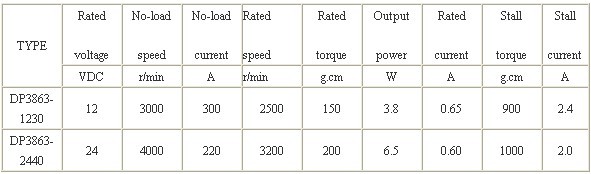

Motor Technical Data



 Gear motor Technical Data
Complete model of configuration DP3863-1230 motor：36PXJ30K□G8D/DP3863-1230



Complete model of configuration DP3863-2440 motor：36PXJ30K□G8D/DP3863-2440



PM DC PLANETARY GEARMOTOR



40PXJ50K/DP4068

Product Specfication and Usage--
1.Diameter 40MM strenghthened type reducer,allows load 50kg.cm
2.Planet gear hold is setup with needle bearing,increase load
capacity effectively and last application life;
3.'All shafting type' is using all steel gear with needle bearing; '
Mixed type' is setup with resin noisedamping gear when ouput, helping reduce noise.

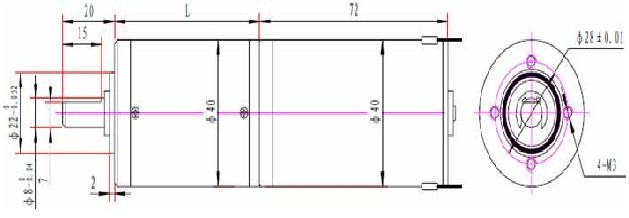

Dimensions

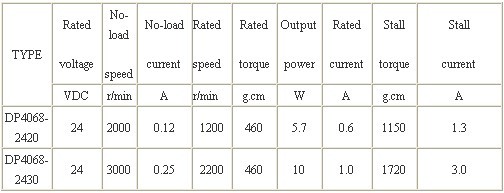

Motor Technical Data



Download(catolague)
