AC Single-phase Worm Gear Motor

Reversible worm Gear motor 40W



90AS/MB-WJ
Indications of the model number
Product specfication:mixed setup, allocated 1:10 MB Gear motor
before worm Gear motor to increase whole total transmission ratio.
Example Given：90AS40-3(motor item) / MB-WJ25G15(reducer iterm)
Item explanation: 90 seat no. tri-phase 4 poles aSynchronous motor,
ouput power 40w, power in use 380V/50HZ;
Mixed setup with gear motor, among the reduction ratio for Worm gear motor is 1:25,
total reduction ratio 1:250,rolling shaft type, output shaft diameter 15mm;
Choosable power supply: 3 means tri-phase 380V 50/60HZ 4 POLES;
4 means tri-phase 220V 50/60HZ 4 POLES;
Choosable additional functions: P heat protecter;D electromagnetic brake;

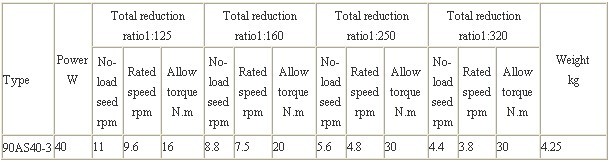

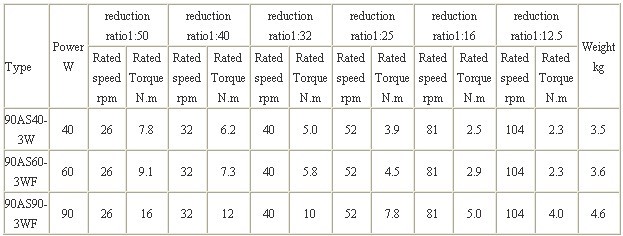

Specifications of Worm gear motors

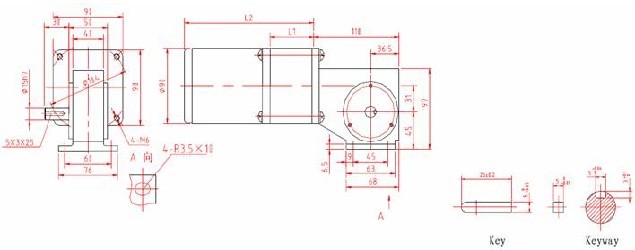

Dimensions



Explanation:
1. The standard when ex-works is letf-output(as diagram),
if requied right-output please advise when order;
2. Above diagram L1 = 42 mm，L2 = 147 mm.



Reversible worm ear motor 40W~90W
90AS/ WJ
Indications of the model number
Example given:90AS60-3F(Motor Item) / WJ50G15(Reducer Item)
Item explanation:
90 seat no. tri-phase 4 poles aSynchronous motor, ouput power 60w,
with cooling fan,power in use 380V/50HZ;
Mixed setup with gear motor, reduction ratio 1:50, rolling shaft type,
output shaft diameter 15mm;
Choosable power supply: 3 means tri -phase 380V 50/60HZ 4 POLES;
4 means tri-phase 220V 50/60HZ 4 POLES;
Choosable additional functions: P heat protecter;D electromagnetic brake;
40W motor choosable addition function: Z mechanical damping;
60W & 90W motor standard with F cooling fan blade, can be made into
FA cooling fan blade.
Specifications of Worm gear motors

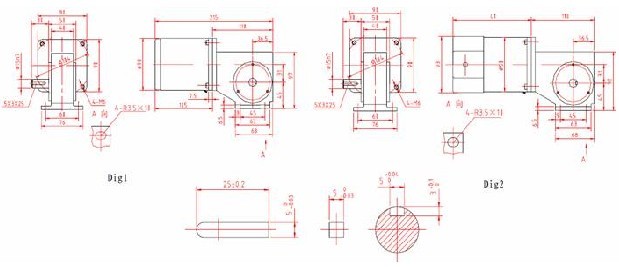

Dimensions


Explanation:：
1. The standard when ex-works is letf-output(as diagram),
if requied right-output please advise when order;
2. With 40W motor please see Dig 1 outline dimension;
With 60W & 90W motor please see Dig 2 outline dimension.
When 60W,L1 =123mm; when 90W,L1 =138mm.
