BLDC Door Motor
PRODUCT INTRODUCTION

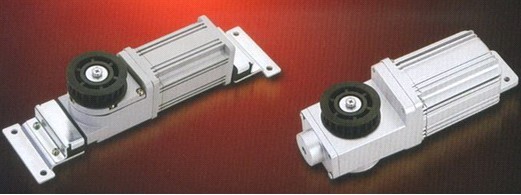

Brushless Door Motor
Product Characters:
This Product Adopted PMDC Brush Motor as the main part of rotor. It can be Matched with computer system of control. It can realize self-supervise through matching with computer, and you can set the best working model. Such as speed ,impetus, resistant power and so on. It has characters of low noise, small volume, light,long life and wide use. Meanwhile, it can meet the customers’ request of update.
Technical Data:
Basic Specification:DC24V ,60W,2500RPM,S1,B Class,IP40
Rated torque of bare motor: 299mN.m
No-Load noise of whole motor:＜50db,L=50cm
Insulation Resistance:＞50MΩ 500V
Life:4000H
Ambient Request: RoHS

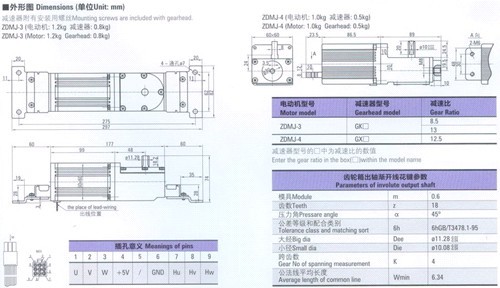

Dimensions(Unit: mm)
