> DC gear motor
PM DC Planetary Gear Motor
PRODUCT INTRODUCTION
PM DC Planetary Gear motor
22PXJ10K/DP2238
Product Specfication and Usage--
1.DP2238 DC motor is specially made with small diameter,
low rotation speed and big torque;
2.Diameter 22MM strenghthened type reducer,
allows load 10kg.cm,small volume and reliable;
3.Especially fit for electric curtain with small diameter
and low noise,also fit for equipment with big strength.

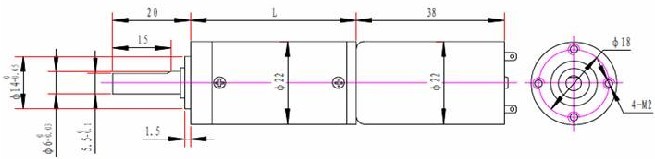

Dimensions

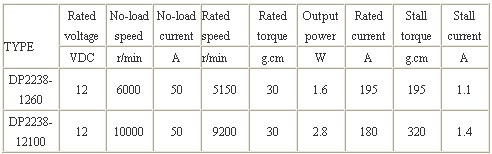

Motor Technical Data

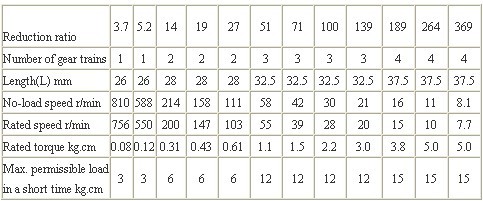

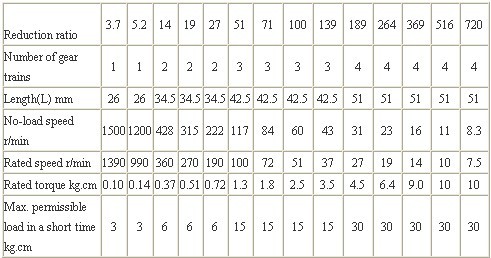

Gear motor Technical Data
Complete model of configuration DP2238-1260 motor：
22PXJ10K□G6D/DP2238-1260（□Fill in reduction ratio）
Complete model of configuration DP2238-12100 motor：
22PXJ10K□G6D/DP2238-1260（□Fill in reduction ratio）
PM DC Planetary Gear motor
24PXJ5K/DP2430
Product Specfication and Usage--
1. Dimeter 24MM planet gear reductor allows load 5kg.cm;
2. Suitable for small diameter, large output equipment and facilities

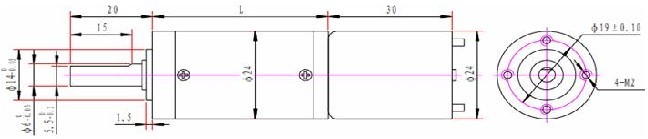

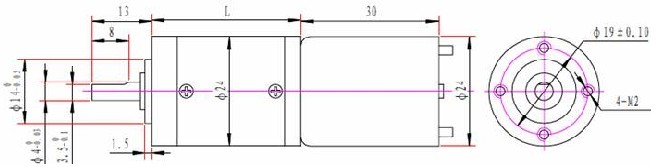

Dimensions
Motor Technical Data

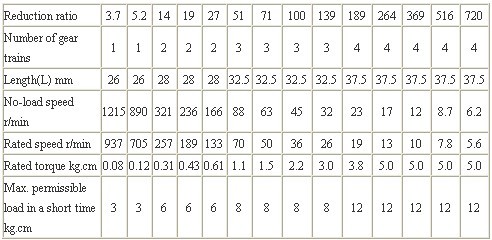

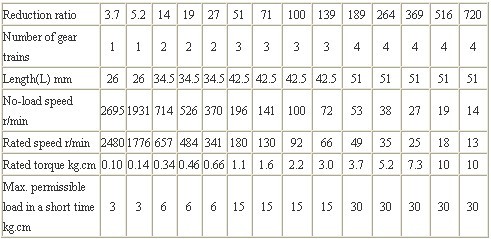

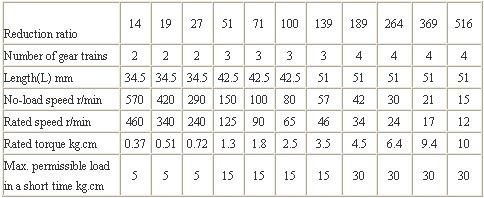

Gear motor Technical Data
Complete model of configuration DP2430-1230 motor：
24PXJ5K□G4D/DP2430-1230（□Fill in reduction ratio）
Complete model of configuration DP2430-1245 motor：
24PXJ5K□G4D/DP2430-1245（□Fill in reduction ratio）
24PXJ10K/DP2430
Product Specfication and Usage--
1.Diameter 24MM strenghthened type reducer,allows load 10kg.cm;
2.Especially fit for electric curtain with small diameter
and low noise,also fit for equipment with big strength.

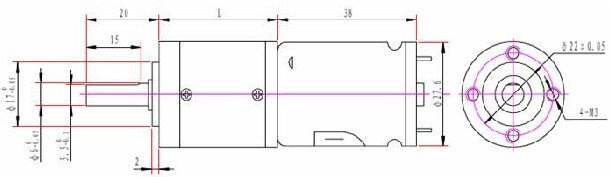

Dimensions

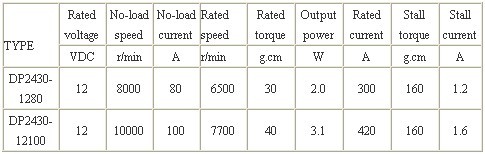

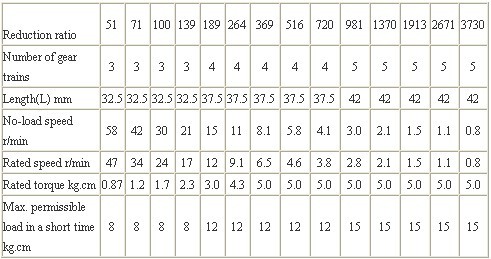

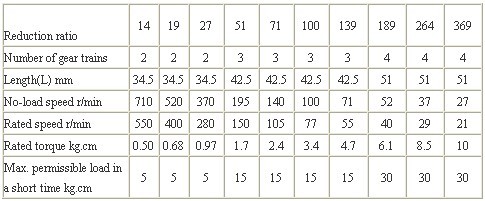

Gear motor Technical Data
Complete model of configuration DP2430-1280 motor：
24PXJ10K□G4D/DP2430-1280（□Fill in reduction ratio）
Complete model of configuration DP2430-12100 motor：
24PXJ10K□G4D/DP2430-12100（□Fill in reduction ratio）
PM DC PLANETARY GEARMOTOR
28PXJ5K/DP2838
Product Specfication and Usage--
1.Diameter 28MM strenghthened type reducer,allows load 5kg.cm;
2. Suitable for small diameter, large output equipment and facilities

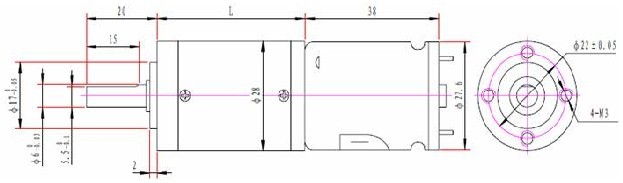

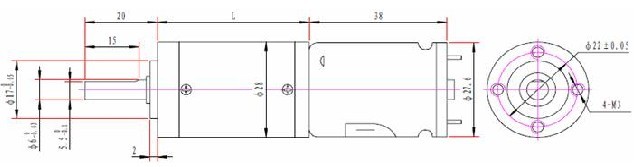

Dimensions

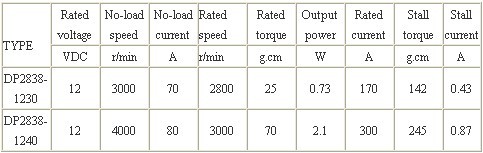

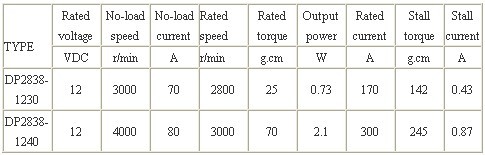

Motor Technical Data

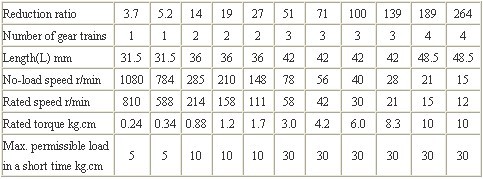

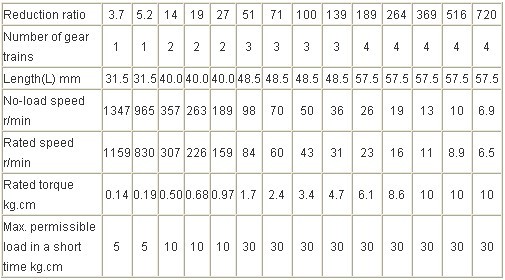

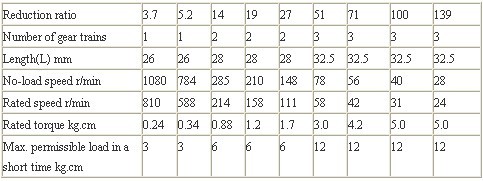

Gear motor Technical Data
Complete model of configuration DP2838-1230 motor：
28PXJ5K□G6D/DP2838-1230（□Fill in reduction ratio）
Complete model of configuration DP2838-1240 motor：
28PXJ5K□G6D/DP2838-1240（□Fill in reduction ratio）
PM DC PLANETARY GEARMOTOR
28PXJ10K/DP2838
Product Specfication and Usage--
1.Diameter 28MM strenghthened type reducer,allows load 10kg.cm;
2. Suitable for small diameter, large output equipment and facilities
Dimensions
Motor Technical Data

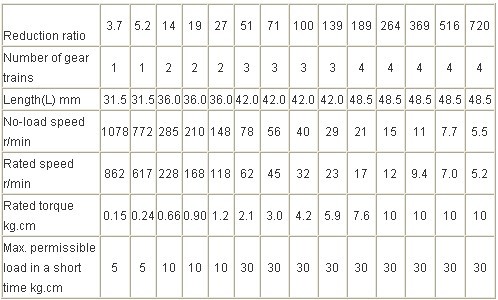

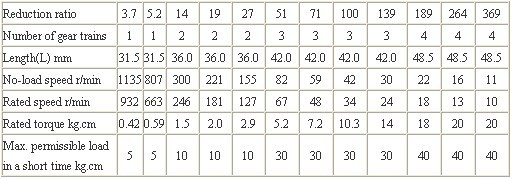

Gear motor Technical Data
Complete model of configuration DP2838-1230 motor：
28PXJ10K□G6D/DP2838-1230（□Fill in reduction ratio）
Complete model of configuration DP2838-1240 motor：
28PXJ10K□G6D/DP2838-1240（□Fill in reduction ratio）
PM DC PLANETARY GEARMOTOR
28PXJ20K/DP2838
Product Specfication and Usage--
1.Diameter 28MM strenghthened type reducer,allows load 20kg.cm;
2. Suitable for small diameter, large output equipmentand facilities

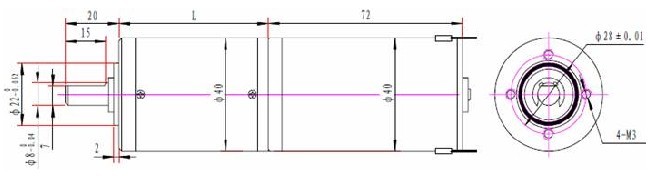

Dimensions

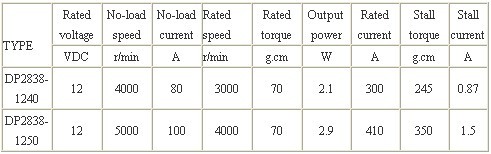

Motor Technical Data

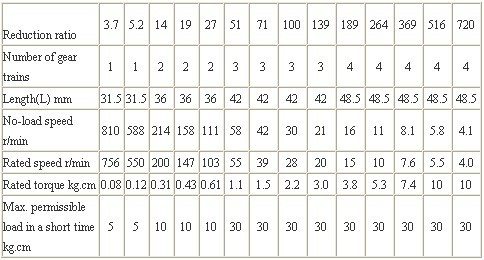

Gear motor Technical
Complete model of configuration DP2838-1240 motor：
28PXJ20K□G6D/DP2838-1240（□Fill in reduction ratio）
Complete model of configuration DP2838-1250 motor：
28PXJ10K□G6D/DP2838-1250（□Fill in reduction ratio）
PM DC PLANETARY GEARMOTOR
36PXJ10K/DP3530
Product Specfication and Usage--
1.Diameter 36MM strenghthened type reducer,allows load 10kg.cm;
2. Suitable for small diameter, large output equipment and facilities
Dimensions

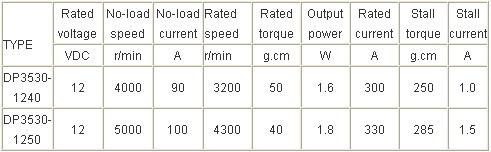

Motor Technical Data

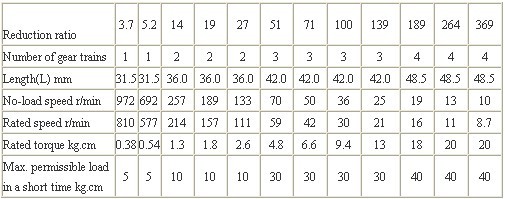

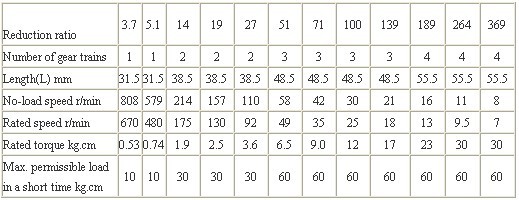

Gear motor Technical Data
Complete model of configuration DP3530-1240 motor：
36PXJ10K□G8D/DP3530-1240（□Fill in reduction ratio）
Complete model of configuration DP3530-1250 motor：
36PXJ10K□G8D/DP3530-1250（□Fill in reduction ratio）
PM DC PLANETARY GEARMOTOR
36PXJ20K/DP3550
Product Specfication and Usage--
1.Diameter 36MM strenghthened type reducer,allows load 20kg.cm;
2. Suitable for small diameter, large output equipment and facilities

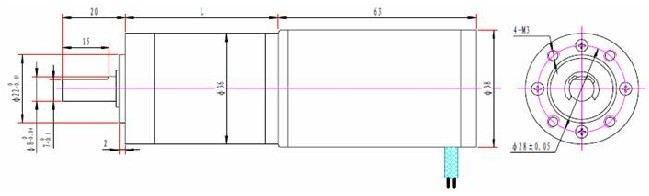

Dimensions

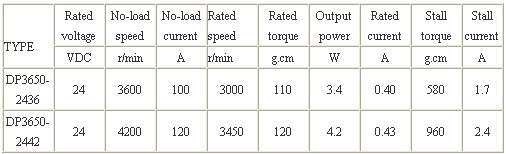

Motor Technical Data

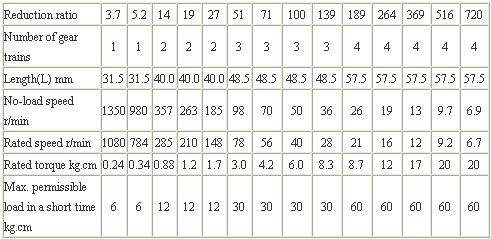

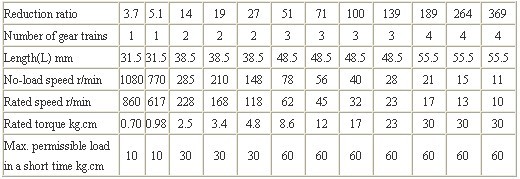

Gear motor Technical Data
Complete model of configuration DP3650-2436 motor：
36PXJ20K□G8D/DP3650-2436（□Fill in reduction ratio）
Complete model of configuration DP3650-2442 motor：
36PXJ20K□G8D/DP3650-2442（□Fill in reduction ratio）
PM DC Planetary Gear Motor
36PXJ30K/DP3863
Product Specfication and Usage--
1.Diameter 36MM strenghthened type reducer,allows load 30kg.cm;
2. Suitable for small diameter, large output equipment and facilities

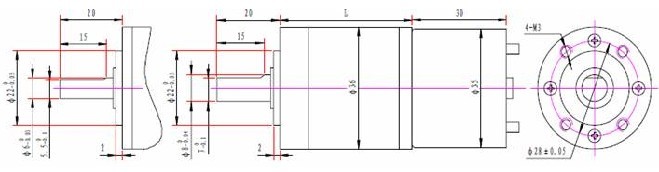

Dimensions

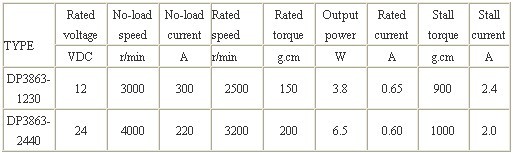

Motor Technical Data

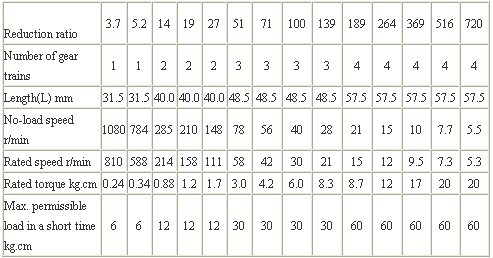

Gear motor Technical Data
Complete model of configuration DP3863-1230 motor：
36PXJ30K□G8D/DP3863-1230（□Fill in reduction ratio）
Complete model of configuration DP3863-2440 motor：
36PXJ30K□G8D/DP3863-2440（□Fill in reduction ratio）
PM DC Planetary Gear Motor
40PXJ50K/DP4068
Product Specfication and Usage--
1.Diameter 40MM strenghthened type reducer,allows load 50kg.cm
2. 2.Planet gear hold is setup with needle bearing,increase load capacity effectively and last application life;
3.'All shafting type' is using all steel gear
with needle bearing; 'Mixed type' is setup with resin noisedamping gear when ouput, helping reduce noise.

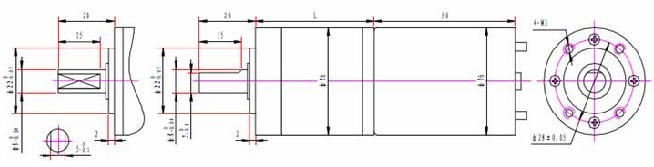

Dimensions

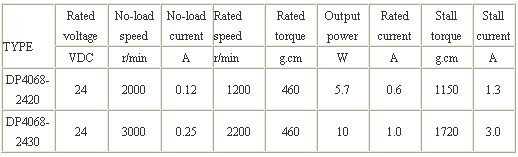

Motor Technical Data
