> DC gear motor
BLDC Planetary Gear Motor
PRODUCT INTRODUCTION
BLDC Planetary Gear motor
28PXJG20K/BL2838
Product Specfication and Usage--
1. Dimeter 28MM planet gear reductor
allows load 20kg.cm;
2. Adopt BLDC motor，adjustable-speed ，CW/CCW
3. Applicable to less maintenance,
low electromagnetic interference occasions

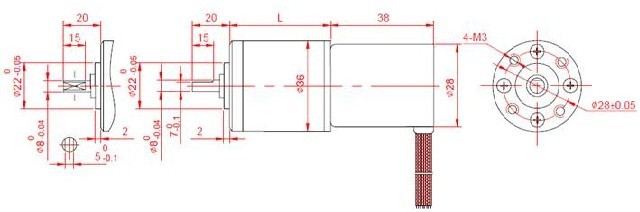

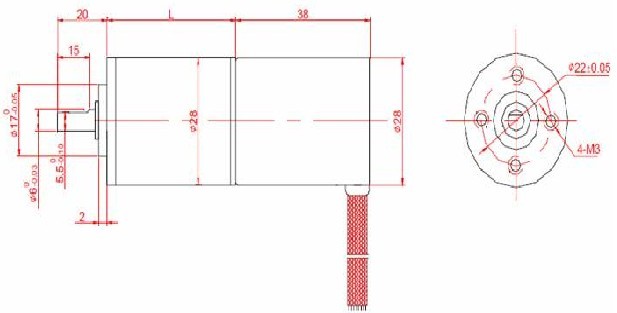

Dimensions

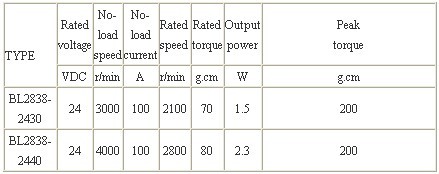

BLDC Motor Technical Data

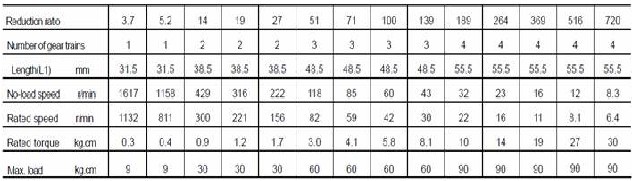

BLDC Planetary Gear motor Technical Data
Complete model of configuration BL2838-2430 motor：
28PXJ20KG□G6D/ BL 2838-2430
（□Fill in reduction ratio）
Complete model of configuration BL2838-2430 motor：
28PXJG20K□G6D/BL2838-2430
（□Fill in reduction ratio）
BLDC PLANETARY Gear motor
36PXJG30K/BL2838
Product Specfication and Usage--
1. Dimeter 36MM planet gear reductor allows load 30kg.cm;
2. Adopt BLDC motor，adjustable-speed ，CW/CCW
3. Applicable to less maintenance, low electromagnetic interference occasions

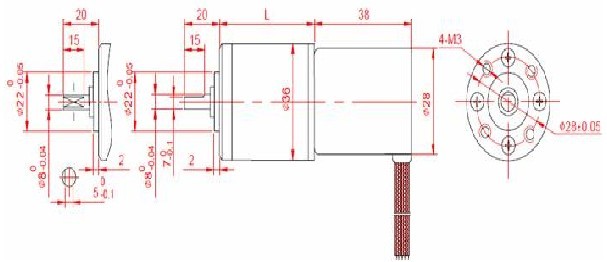

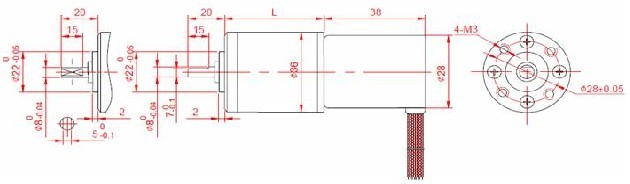

Dimensions

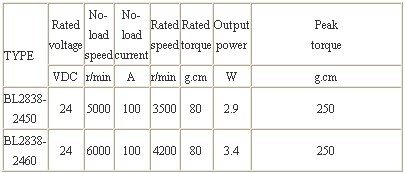

BLDC Motor Technical Data

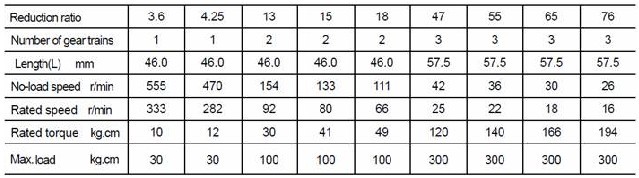

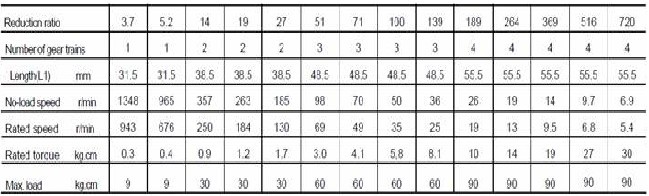

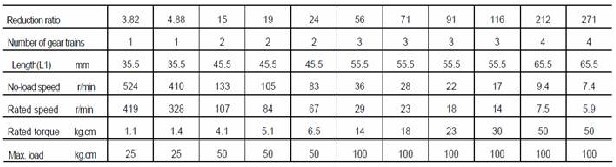

BLDC Planetary Gear motor Technical Data
Complete model of configuration BL2838-2450 motor：
36PXJG30K□G8D/BL2838-2450
（□Fill in reduction ratio）
Complete
model of configuration BL2838-2460 motor：
36PXJG30K□G8D/BL2838-2460
（□Fill in reduction ratio）
Complete model of configuration BL2838-2460 motor：36PXJG30K□G8D/BL2838-2460
（□Fill in reduction ratio）
BLDC PLANETARY GEAR MOTOR
40PXJG50K/BL3660
Product Specfication and Usage--
1. Adopt BLDC motor，adjustable-speed ，CW/CCW
2. Planet gear hold is setup with needle bearing,increase
load capacity effectively
and last application life;
3. Applicable to less maintenance, low electromagnetic
interference occasions

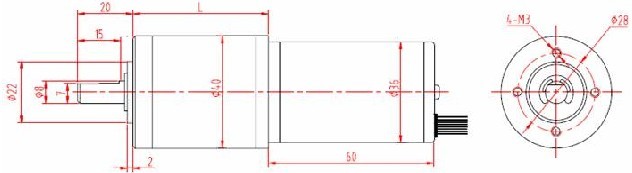

Dimensions

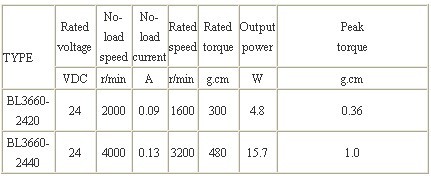

BLDC Motor Technical Data
BLDC Planetary Gear motor Technical Data
Complete model of configuration BL3660-2420 motor：
40PXJG50K□G8D/ BL3660-2420
（□Fill in reduction ratio）
Complete model of configuration BL3660-2440 motor：
40PXJG50K□G8D/ BL3660-2440
（□Fill in reduction ratio）
Complete model of configuration BL3660-2440 motor：G8D/ BL3660-2440（□Fill in reduction ratio）
40PXJG50K□
BLDC PLANETARY GEAR MOTOR
48PXJG50K/BL4260
Product Specfication and Usage--
1. Adopt BLDC motor，adjustable-speed ，CW/CCW
2. Planet gear hold is setup with needle bearing,increase load capacity effectively
and last application life;
3. Applicable to less maintenance,
low electromagnetic interference occasions

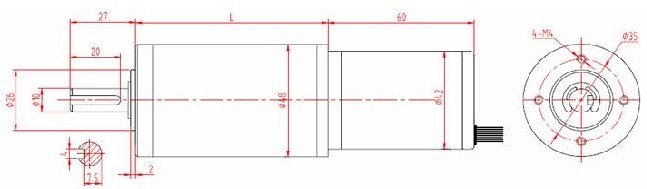

Dimensions

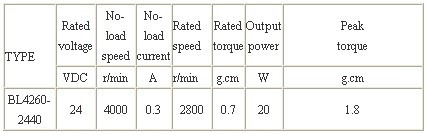

BLDC Motor Technical Data

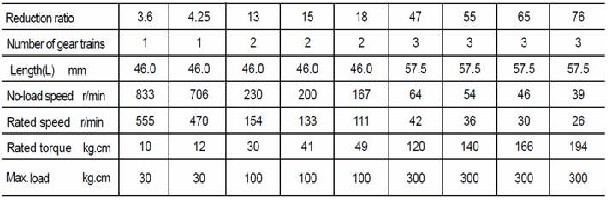

BLDC Planetary Gear motor Technical Data
Complete model of configuration BL4260-2440 motor：
48PXJG50K□G10D/ BL4260-2440（□Fill in reduction ratio）
BLDC PLANETARY GEAR MOTOR
48PXJG200K/BL4260
Product Specfication and Usage--
1. Adopt BLDC motor，adjustable-speed ，CW/CCW
2. Planet gear hold is setup with needle bearing,increase load capacity effectively
and last application life;
3. Applicable to less maintenance,
low electromagnetic interference occasions

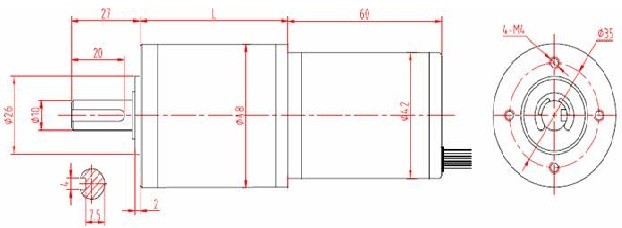

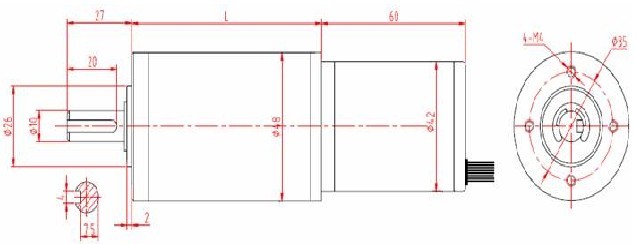

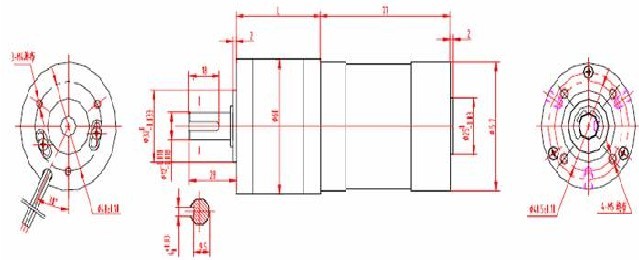

Dimensions

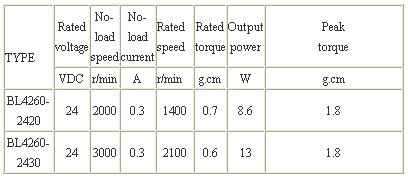

BLDC Motor Technical Data

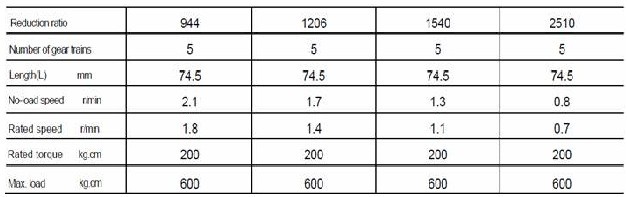

BLDC Planetary Gear motor Technical Data
Complete model of configuration BL4260-2420 motor：
48PXJG200K□G10D/ BL4260-2420
（□Fill in reduction ratio）
Complete model of configuration BL4260-2430 motor：48PXJG200K□G10D/ BL4260-2430
（□Fill in reduction ratio）
Complete model of configuration BL4260-2430 motor：
48PXJG200K□G10D/ BL4260-2430
（□Fill in reduction ratio）
BLDC PLANETARY GEAR MOTOR
60PXJG300K/BL5778
Product Specfication and Usage--
1. Adopt BLDC motor，adjustable-speed ，CW/CCW
2. Planet gear hold is setup with needle bearing,
increase load capacity effectively
and last application life;
3. Applicable to less maintenance,
low electromagnetic interference occasions

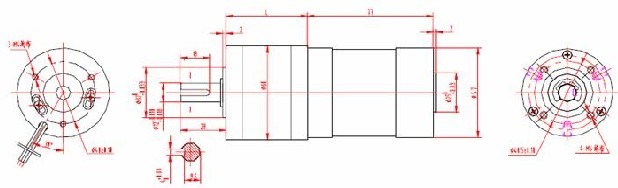

Dimensions

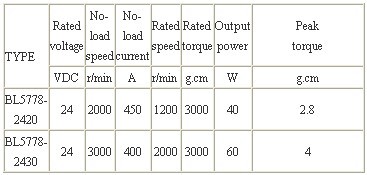

BLDC Motor Technical Data

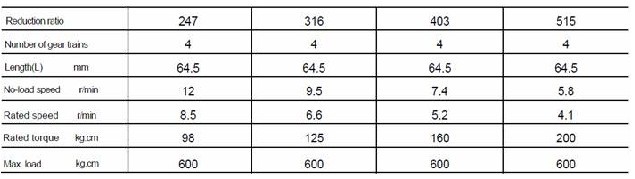

BLDC Planetary Gear motor Technical Data
Complete model of configuration BL5778-2420 motor：
60PXJG300K□G12D/ BL5778-2420
（□Fill in reduction ratio）
BLDC Planetary Gear motor Technical Data
Complete model of configuration BL5778-2420 motor：60PXJG300K□G12D/ BL5778-2420（□Fill in reduction ratio）
Complete model of configuration BL5778-2430 motor：
60PXJG300K□G12D/ BL5778-2430
（□Fill in reduction ratio）
