DC Worm Gear Motor

PM DC Worm Gear motor
90PWJ200K/83125



Product Specfication and Usage--
1. An excellent worm Gear motor allows 200kg.cm load;
2. Whole shafting setup, low noise.Can provide left-output,rigth-output and hollow-output;
3. Can setup different length,shape,direcetion output shaft in the hollow shafting;

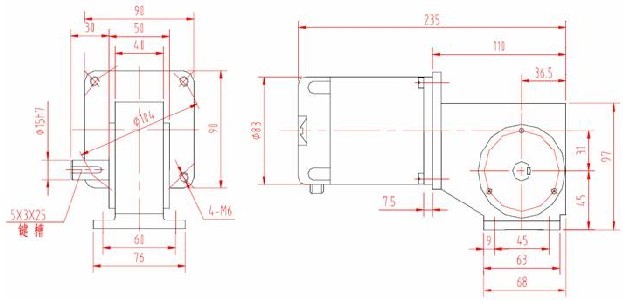

Dimensions

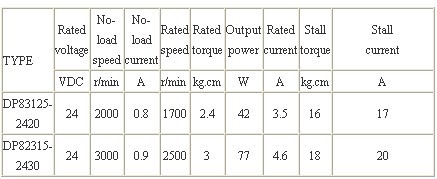

Motor Technical Data

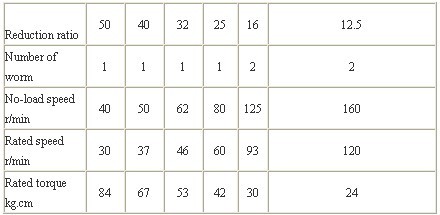

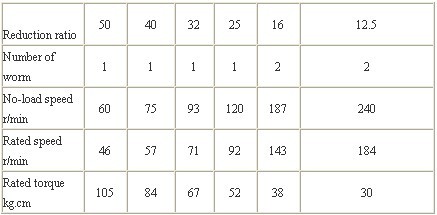

Gear motor Technical Data
Complete model of configuration DP83125-2420 motor：90PWJ200K□G15/DP83125-2420（□Fill in reduction ratio）



Complete model of configuration DP83125-2430 motor：90PWJ200K□G15/DP83125-2430（□Fill in reduction ratio）



PM DC WORM GEARMOTOR
90PWJ300K/60PXJ



Product Specfication and Usage--
1.When Worm gear motor setup with planet gear motor,can gain a very low speed.
2. Whole shafting setup, low noise.Can provide left-output,rigth-output and hollow-output;
3. Can setup different length,shape,direcetion output shaft in the hollow shafting;
Explanation
This product is mixed setup with 90PWJ worm gear box with 60PXJ planet gear motor,has made up

the single-class driving defect of 90PWJ worm gear box. In the mixed setup, the planet gear

motor work as the preposing motor, meanwhile select big modulus gear motor as main body of the

setup,increase load cap

acity of Worm gear motor.
The mixed setup of these two gear motor.there will be 480 specfication with biggest reduction

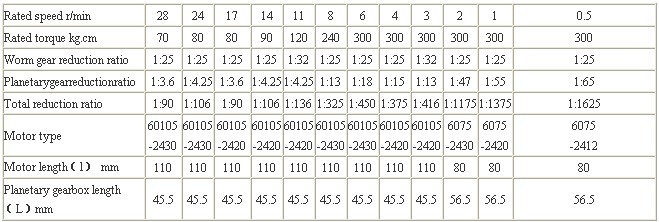

ratio 1:16300 and smallest 18 mins per RPM. Below table is the 12 common specfication we recommend.
If no need such a big torque,can choose super-silent principle to assemble. Please advise the

load torque before order, our engineer would be responsible for selection.

Gear motor Technical Data

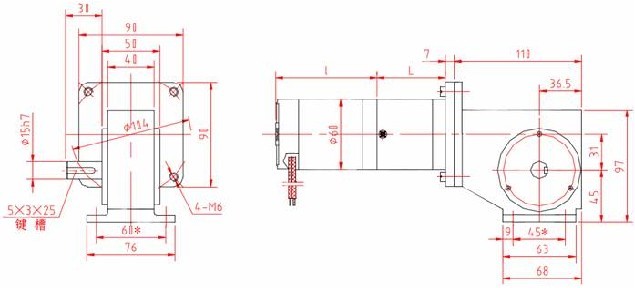

Dimensions
