> Three phase motor
AKK SERIES HIGH VOLTAGE THREE-PHASE ASYNCHRONOUS MOTORS
PRODUCT INTRODUCTION
General Desription
AKK series high voltage 3-phase ASynchronous motors (Frame Nc.355~1000mm ) are up-todate products designed by our company. Which is the rephacement of the JS series 3-phase ASynchronous motors.
This series motors is designed with the optimizd design technique of computer. With the material chosen exquisitely and products excellent technique, such motors are engineered with many remarkable features such as high efficiency, low noise,small vibration , Light weight. Reliable performance, eay mounting and maintenance etc.
This series motors can meat the requirements for all kinds of working conditions and are with protection
degree:IP23,IP44 or IP54.The winding of motor will be provided with F insulation and moisture proof performance after it is treated with vacuum pressure impregnation.
This series motors comply with China National standard GB755\
And tolerance meet Chinese National standard GB 1800-1804 and releant IEC standard.
This series motors can be designed as:3kV,6kV and 10kV(and others depend on the orders).The rated frequency is 50Hz.duty is S1.
The motors in basic design are of horizontal with feet mounting type(IMB3),which is in accordance with GB997 and IEC34-7.

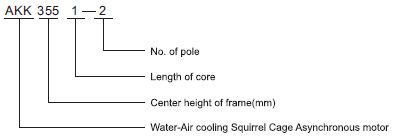

Type Designation
PRE:None
NEXT：A2 squrriel-cage motor
