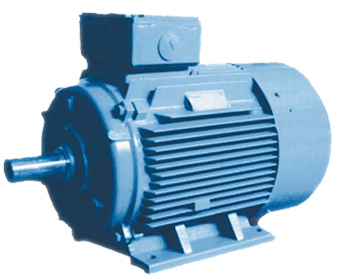

IE2 Series High-Efficiency Three-Phase Induction Motors

IE2 Series High-Efficiency Three-Phase Induction Motors

The efficiency index.of this series motors confirms to the IEC60034-30 Standard about IE2 is Value.

The IE2 series high efficiency standard three phaseinduction motors are totally enclosed fan cooled squirrel cage motors that are manufactured with new materialand technology. It is a new generation motor and can save energy.

IE2 series motors center height: H80-H355,Output:0.55Kw,Pole:2、4、6 Degree of protection:IP55,cooling method:IC411,Mounting dimensions conform to IEC standard,Rated voltage:400V ,Rated frequency;50Hz,Ambient temperature; 40℃ max,Altitude:1000m,Duty:continuous(S1)


The IE2 series high efficiency standard three phaseinduction motors are totally enclosed fan cooled cage motors that are manufactured with new materialand technology .It is a new generation motor and can save energy.

IE2 series motors center height: H80-H355,Output:0.55Kw,pole:2、4、6 Degree of protection:IP55, cooling method:IC411,Mounting dimensions conform to IEC standard,Rated voltage:400V Rated frequency;50Hz,Ambient temperature:40℃ max,Altitude:1000m,Duty:continuous(S1).

 IE2 series high efficiency three phase induction motors have some notable  advantages such as high efficiency,good starting performance, low noise improved structure,improved cooling capabilities,

 This series motors are three phase induction motors which be used for general motors and can be used to drive all kinds of general purpose machines such as compressors, ventilators,pumps,ect.Other uses such as petrol chemical industries and mining .For special requirements

Please contact our sales department.

IE2 series motors are equal with I2 series three phaseinduction motors in dimensions.

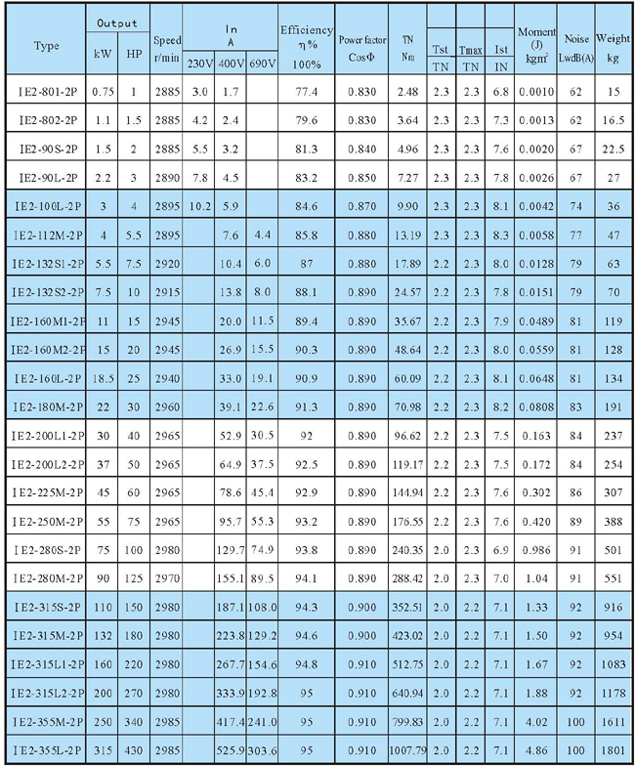

 TECHNICAL DATA  (SPEED 3000RPM 2-POLE 50HZ)

   Download(catalogue)
