AEJ brake motor

AEJ Series Brake Three-phase ASynchronous motor





General description

AEJ Series Motor is designed on the basis of A Series Motor, through adding a disk DC electro-magnetic brake between the fan end, endshield, and the fan itself. It features high efficiency, energy saving, high value of startup toque, prompt braking, accurate positioning, simple structure, easy operation, small vibration, long longevity and the rotor has no axial float when braking. It has been widely used in various machines that need prompt braking, accurate positioning and reciprocating motion, such as the machinery for crane, foodstuff, light industry packing, and printing, construction, etc.

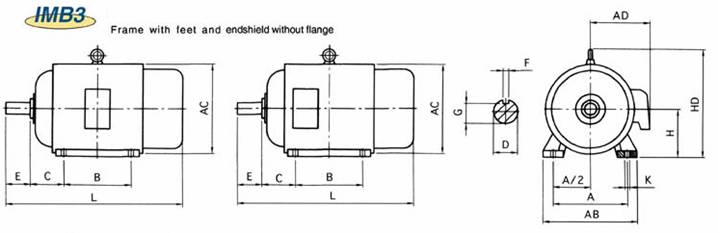

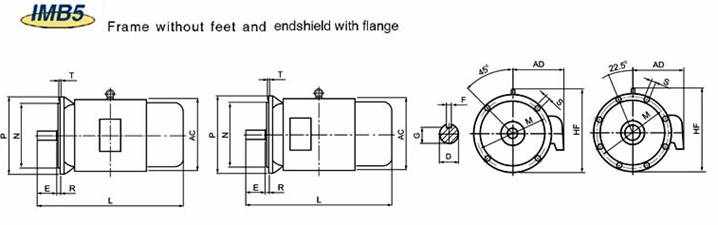

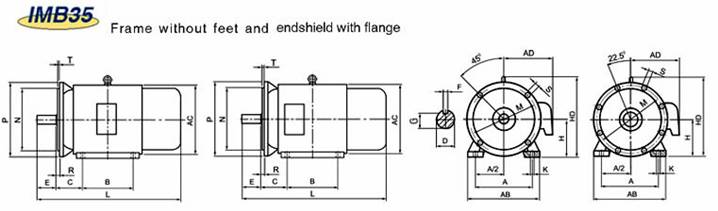

Mounting arrangement of the motor

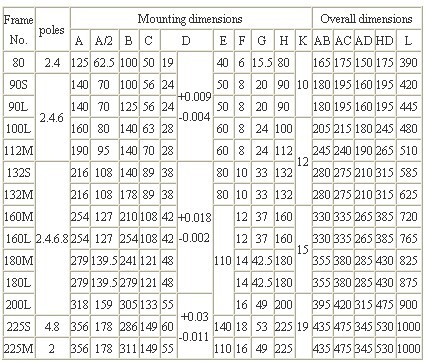

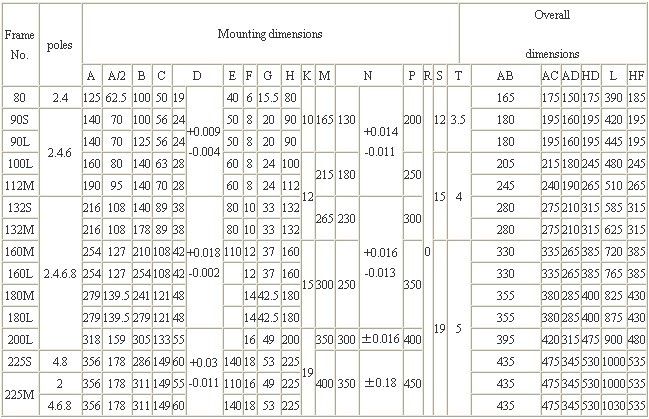

Frame 80~160:(IM)B3, B5, B6, B7, B8,B35

Frame 180~225:(IM)B3, B5, B35


Working conditions

Ambient operation temperature: It may vary with changing weather but never exceeds 40℃;

Altitude: Not more than 1000m;

Rated frequency: 50Hz;

Rated Voltage: 380V

Termination: Y if below 3KW, △ if over 4KW

Operation Mode: Consecutive (S1)

Protection Class: IP44:

Brake Type: IP23;

Cooling Method: IC141

Insulation Class: B;

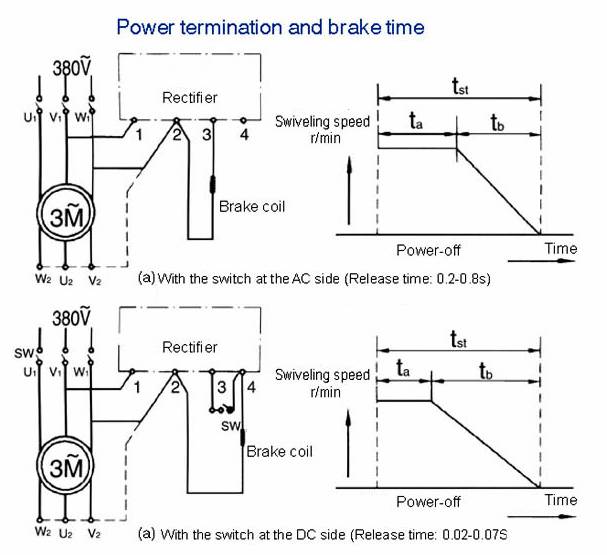

Brake mode: Braking without excitation; the power for braking comes from the rectifier in the connection box; Frame Size H100 or below it; AC220V-DC99V; Frame size over H112; AC380V-DC170V.

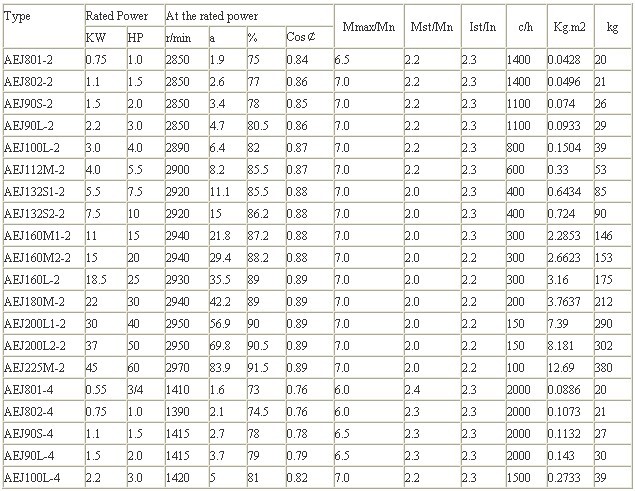

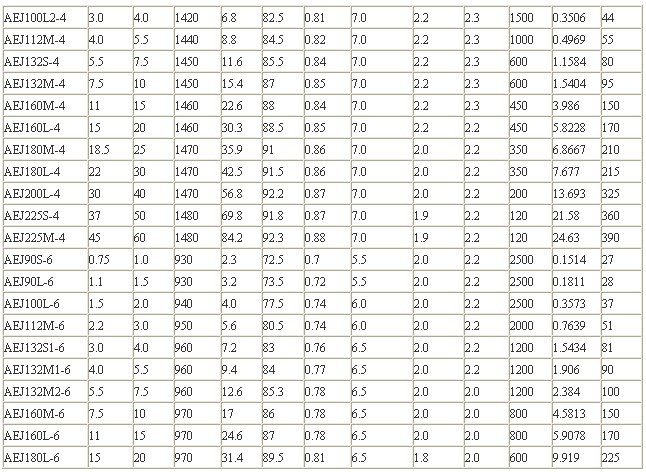

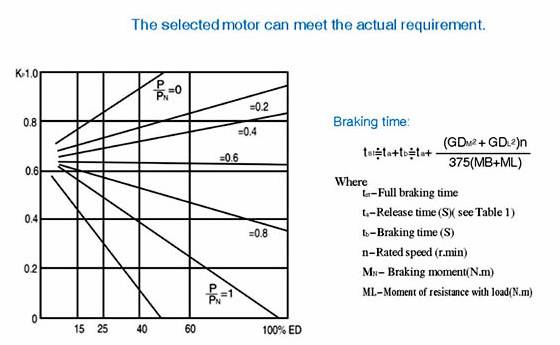

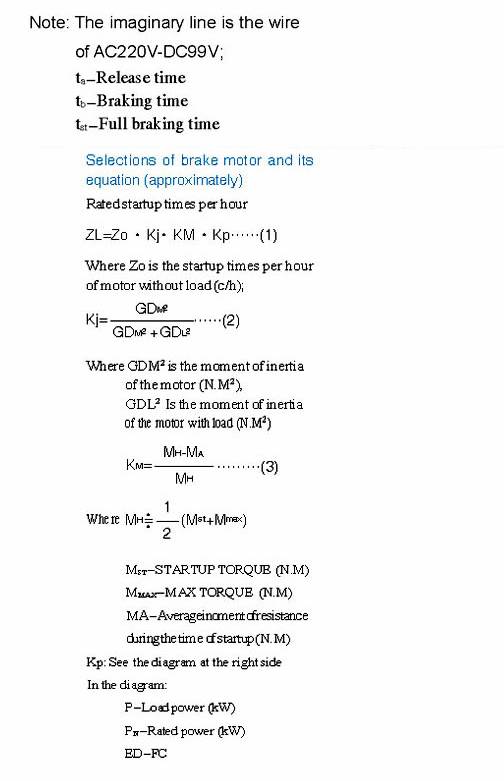

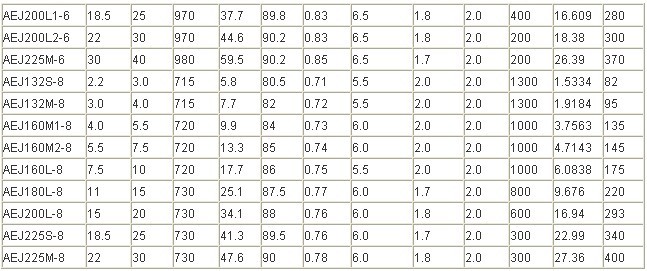

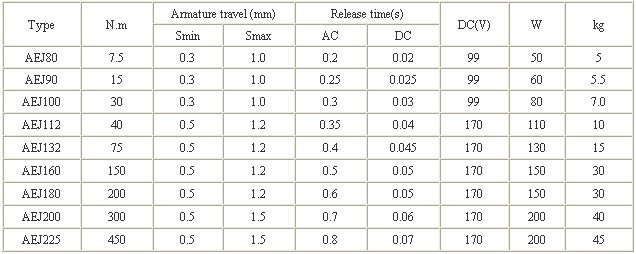

Technical data of the brake
