AD multi-speed motor

AD Series Three-phase Multi-speed ASynchronous motor




General description

YD Series Change-pole Multi-ASynchronous motor is designed on the basis of Y series products. Its features lie in the fact that it can have step speed change according to the different requirements of load so as to reach the reasonable match of power and simplify the speed-change system. It is an ideal choice for energy saving. It has been widely used in the machine tool, mining area and metallurgy, textile, chemical industry and agricultural machinery. YD series motor have Protection Class of IP44, Insulation Class of B, and Cooling Method of IC0141.

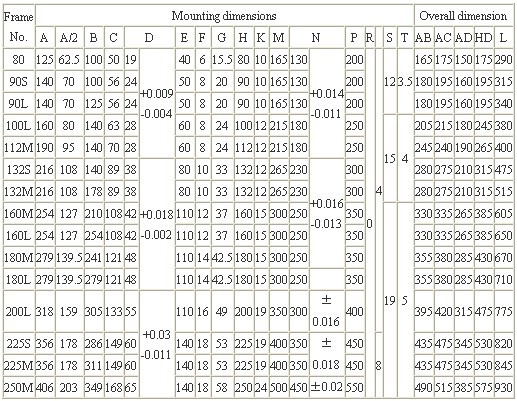

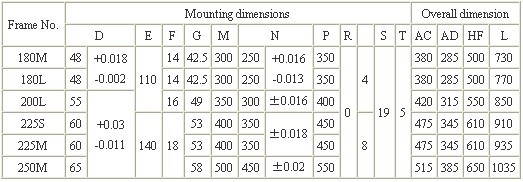

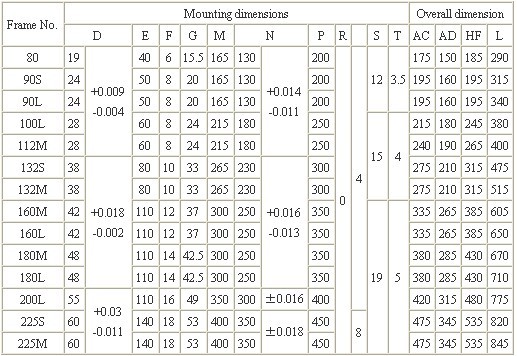

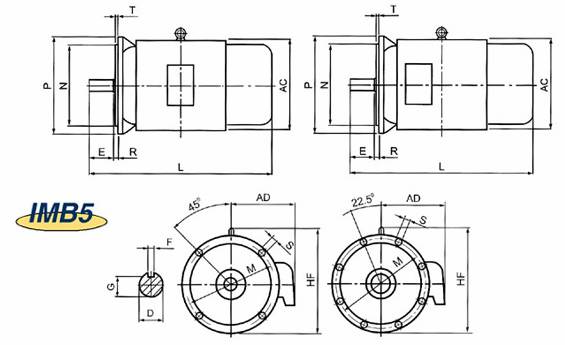

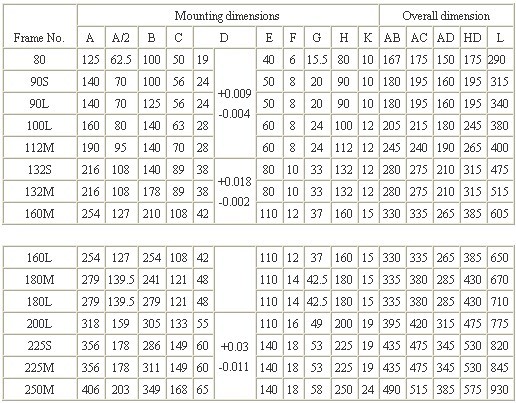

Mounting arrangement of the motor

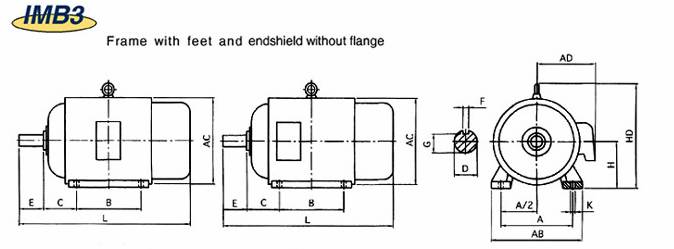

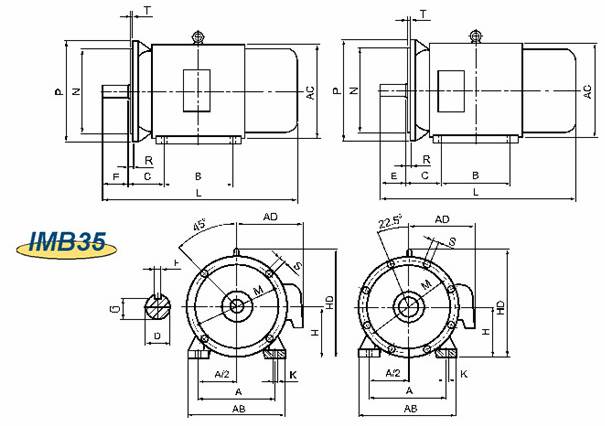

Frame80-160:(IM)B3,B5,B6,B7,B8,B35,V3,V5,V6,V15,V36

Frame 180-225:(IM)B3,B5,B35, V1

Frame 1250:(IM)B3,B5,V1

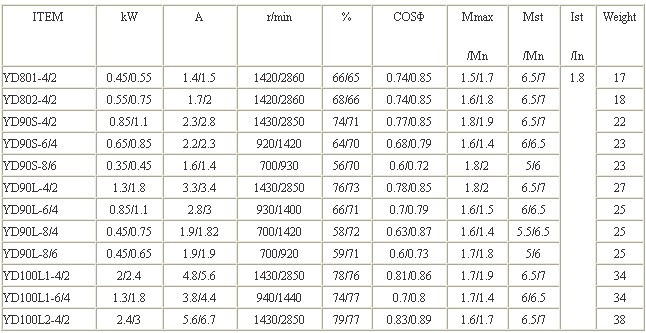

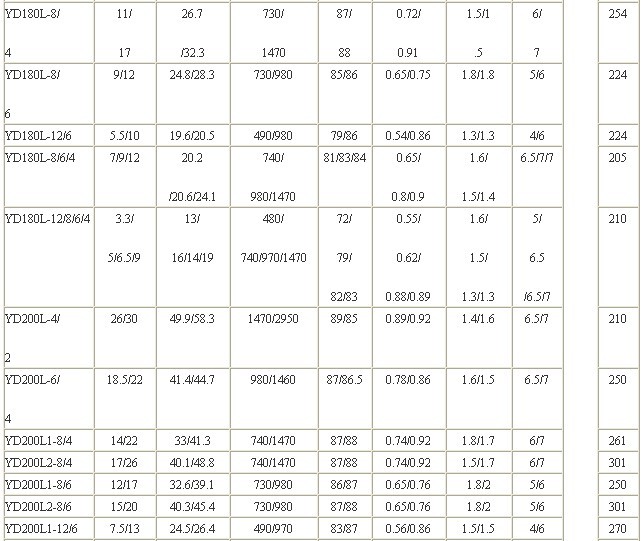

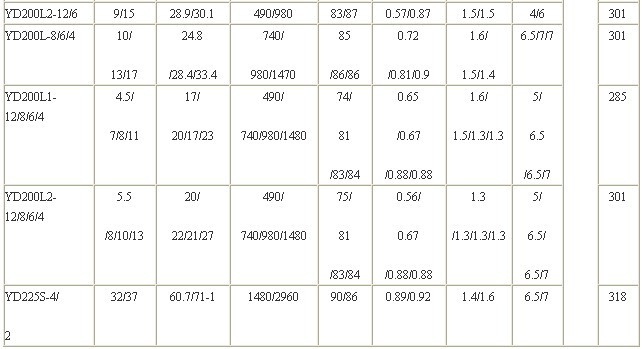

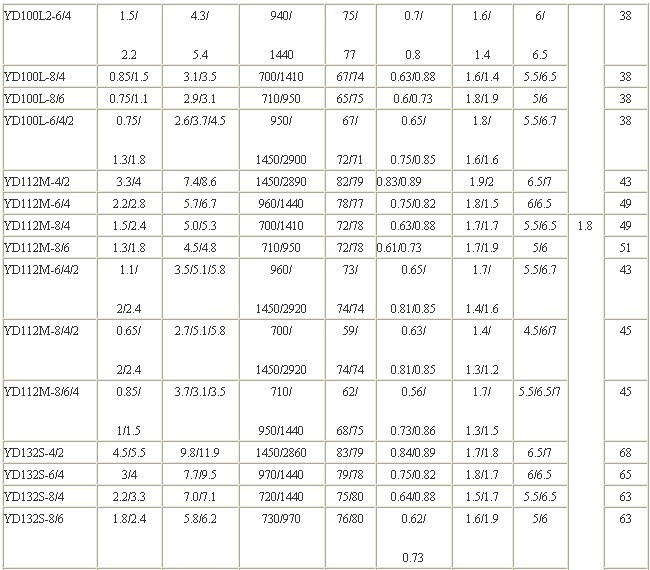

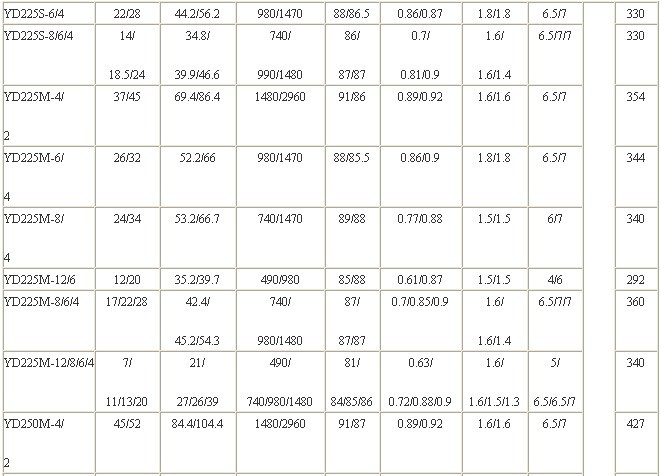

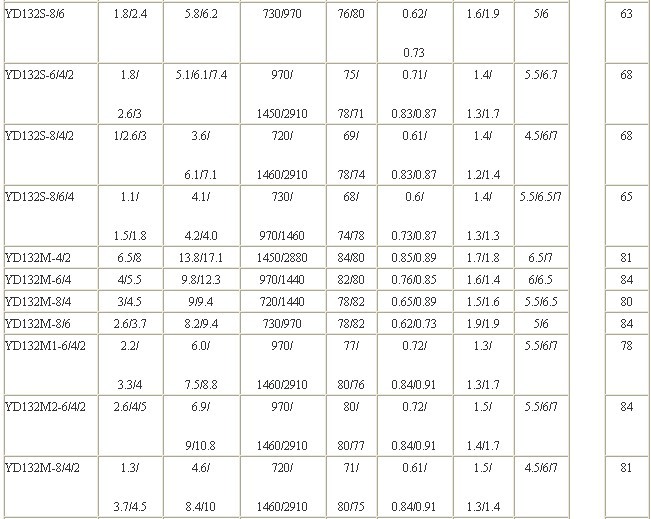

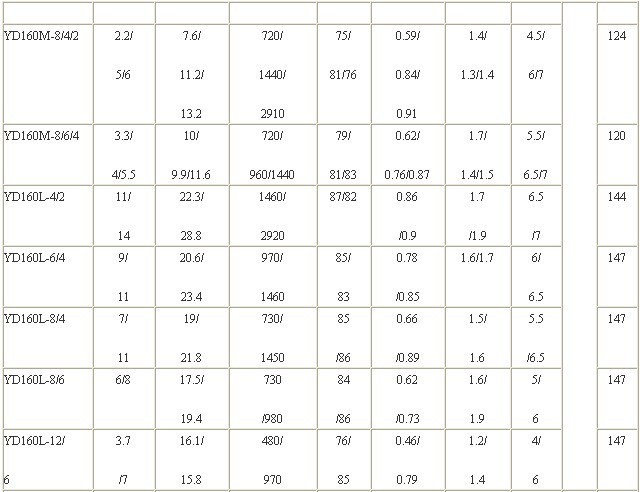

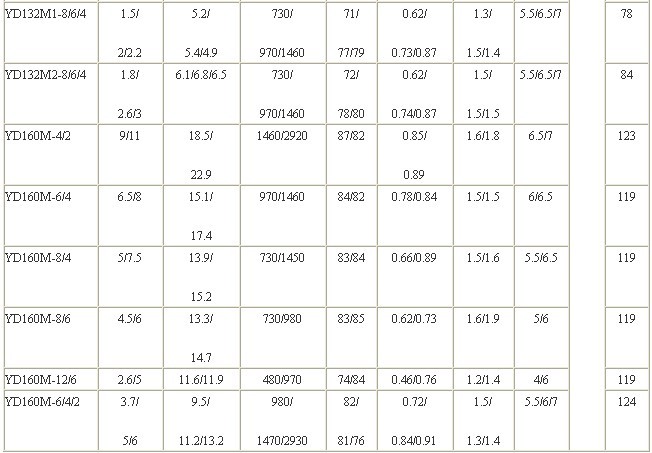

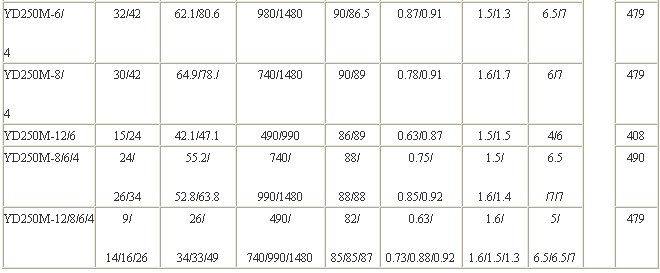

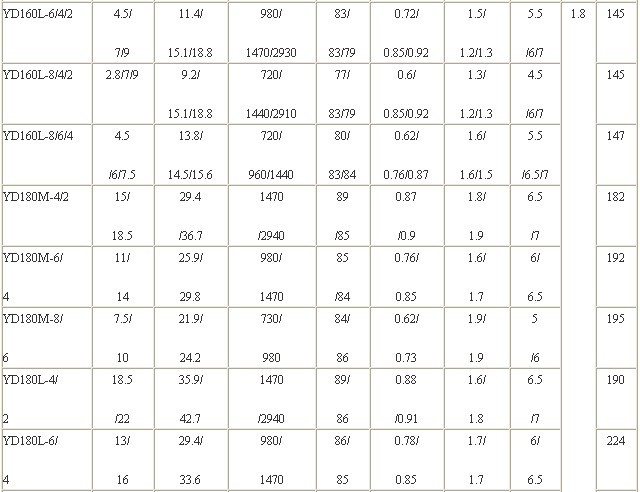

Techinical Data

Working condition

Ambient operation temperature:-5~40°C

Altitude:≤1000m

Rated frequency:50Hz

Rated Voltage:380V

Operation Mode: S1
